Laser marking and engraving machines equipped with CCD (Charge-Coupled Device) camera positioning technology offer a significant advantage in precision and ease of use. These machines are widely used in various industries for high-quality marking and engraving on a range of materials, from metals to plastics and ceramics. The integration of a CCD camera provides advanced visual positioning capabilities, enabling the machine to locate and mark even the most complex and irregularly shaped objects. This article will guide you through how to effectively use a laser marking and engraving machine with CCD camera positioning to enhance your production process.
What is a CCD Camera in Laser Marking & Engraving Machines?
Before diving into the usage process, it is essential to understand the role of the CCD camera in these machines. The CCD camera is a highly sensitive imaging device that captures real-time images of the surface being marked or engraved. This allows the system to detect and correct any misalignments, ensuring accurate marking on the target area. The camera helps to precisely position the laser beam according to the contours or specific areas of the object, improving the accuracy of the marking or engraving process.
Setting Up the Machine
To begin using a laser marking or engraving machine with CCD camera positioning, the first step is proper machine setup. Ensure the following:
- Calibrate the Camera: Calibration is critical to ensure that the CCD camera accurately identifies the positions on the material. The system usually includes a calibration procedure where the camera adjusts its focus and alignment according to the material’s surface.
- Prepare the Material: The object to be marked or engraved should be placed securely on the work table. The camera will detect its position and automatically adjust the laser’s path to ensure precision.
- Load the Design: Once the camera is calibrated and the material is in place, load the design or logo into the system. The software linked to the machine will enable you to adjust the position, size, and orientation of the design on the material.
Using the CCD Camera for Positioning
Once everything is set up, you can start utilizing the CCD camera for accurate positioning:

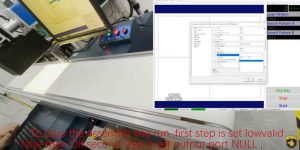

- Visual Detection: The camera captures the material’s surface and displays it on the control interface, giving you a real-time preview of where the laser will mark or engrave.
- Alignment Adjustment: The software allows you to make precise adjustments to the design based on the live feed from the CCD camera. You can move, rotate, or resize the design to ensure it fits perfectly on the material.
- Automatic Positioning: The CCD camera can automatically adjust the laser beam’s position to match the material’s contours. If the material is irregularly shaped or if there are any variations in positioning, the camera ensures the laser hits the correct spot, maintaining the highest level of accuracy.
- Real-time Feedback: As the machine operates, the CCD camera provides real-time feedback, allowing you to make any necessary adjustments on the fly. This eliminates the risk of mistakes or misalignments, ensuring that the final product meets the desired quality.
Benefits of Using CCD Camera Positioning in Laser Marking & Engraving Machines
- Improved Precision: The integration of a CCD camera ensures that the laser accurately marks or engraves on complex surfaces, irregular shapes, or uneven materials.
- Increased Efficiency: With the ability to automatically adjust the laser’s positioning, the machine can work faster, reducing setup times and improving overall production speed.
- Enhanced Flexibility: The CCD camera allows for marking and engraving on a wide range of materials and objects, including curved, cylindrical, and flat surfaces, with high precision.
- Cost-Effective: By minimizing errors and reducing the need for manual adjustments, CCD camera positioning can save both time and material costs, leading to more efficient production processes.
- Ease of Use: The real-time visual feedback provided by the CCD camera simplifies the operation of the machine, even for those with limited experience in laser marking or engraving.
Conclusion
Using a laser marking and engraving machine with CCD camera positioning provides significant advantages in terms of precision, efficiency, and flexibility. By enabling automatic positioning and real-time feedback, these machines help manufacturers achieve high-quality results with minimal errors. Whether you are working with complex designs, irregular materials, or need high-volume production, a machine with CCD camera positioning can streamline your workflow and ensure consistent, accurate results.
