The All-in-One Laser Machine is a versatile, high-performance system designed to meet the needs of modern manufacturing and precision marking industries. With customizable features and cutting-edge laser technology, the All-in-One Laser Machine offers an all-in-one solution for engraving, marking, cutting, and more.

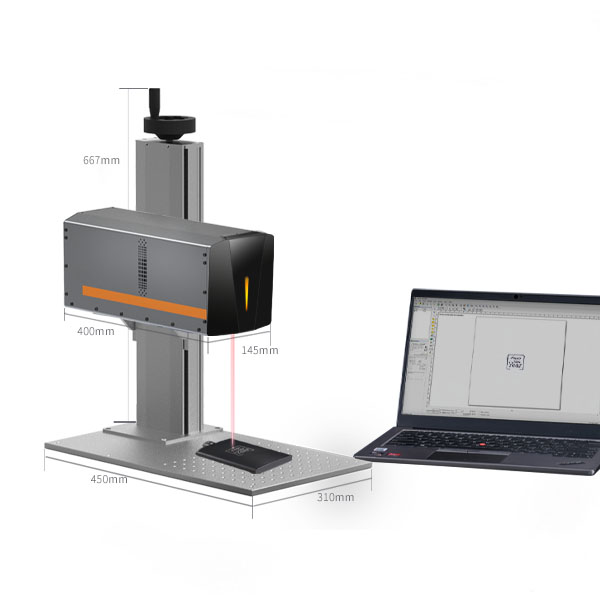

The AiO all-in-one laser features an ultra-compact lightweight design and ultra-high performance to power the JCZ EZCAD3 and JPT MOPA fiber lasers.
Laser Type: Choose between Q Pulsed Fiber (20W, 30W models) or MOPA Pulsed Fiber (50W model), providing exceptional energy and pulse control for varied applications.
Wavelength: 1064nm for superior marking, engraving, and cutting on a wide range of materials, including metals, plastics, ceramics, and more.
Beam Quality: The machines offer beam quality of <1.5 to <1.6, allowing for sharp, clean markings and cuts with minimal material deformation.
Advanced Software: Powered by EZCAD2 software with full Windows 32/64-bit compatibility. The software supports a wide range of vector and bitmap formats including AI, DXF, PLT, SVG, JPG, PNG, and more. Easily integrate with your existing workflow.
Customization: The system supports custom vector-based and bitmap files, as well as dynamic data integration, making it ideal for variable data printing and barcode/2D code applications.
Motion Control: Optional one-axis motion control for greater flexibility, and support for rotary marking to handle cylindrical objects with ease.
Marking on the Fly: Allows for continuous marking while materials are in motion, increasing throughput and efficiency.
Multi-Head Control: Optional multi-head control for simultaneous processing, significantly boosting productivity.
High-Speed Operation: With a max working speed of 6000mm/s, the A1 Series offers ultra-fast processing without compromising on precision.
Max. Working Size: Models with different working size options, ranging from 40x40mm to 350x350mm, provide flexibility to handle small to large components.
Optional Real-time Monitoring: Monitor your laser operations in real-time for better control and efficiency.
| Model | A1-BASIC-20 | A1-BASIC-30 | A1-BASIC-50 | |
| Laser | Model | Customized for AiO | Customized for AiO | Customized for AiO |
| Laser Type | Q Pulsed Fiber | Q Pulsed Fiber | MOPA Pulsed Fiber | |
| Wavelength | 1064nm | 1064nm | 1064nm | |
| Average Output Power | 18.5±0.5W | 31±1W | 51±1W | |
| Peak Power | 6.7KW | 10KW | 11KW | |
| Frequency | 27-60KHz | 30-60KHz | 45-170KHz | |
| Pulse Width | 90ns | 70ns | 100ns | |
| Beam Quality | ＜1.5 | ＜1.6 | ＜1.6 | |
| Single Pulse Energy | 0.7mj | 1.0mj | 1.1mj | |
| First Pulse Control | No | |||
| Fast Response Time | No | |||
| Anti Reflection | No | |||
| Beam Leakage | No | |||
| Control System | Brand | JCZ | ||
| Software | EZCAD2 | |||
| Version | Latest Version | |||
| Operation System | All Windows 32/64 Bits | |||
| Communication | USB | |||
| Software Kernal | 32 Bits | |||
| Max. File Size | MB-Level | |||
| Multi-threat | No | |||
| Controller | Customized for AiO | |||
| Processor | FPGA | |||
| I/O | 3 Inputs, 2 Outputs | |||
| Font Type | Unlimited | |||
| Code Type | 50+ Barcodes and 2D Codes | |||
| Vector | Ai, DXF, PLT, SVG… | |||
| Bitmap | JPG, PNG, JPEG… | |||
| Dynamic Data | 10+ Types | |||
| Filling Methods | 6 Built-in | |||
| Motion Control | 1 Axis Optional | |||
| Multi-Parameter | 256 | |||
| Parameter Assistant | No | |||
| Multi-file | No | |||
| Standalone | No | |||
| Rotary Mode | Optional | |||
| XY Mode | No | |||
| Marking on the Fly | Optional | |||
| Standalone + MOF | No | |||
| Large Size Processing | No | |||
| Ultra-speed Coding | No | |||
| TCP IP Remote Commands | No | |||
| Multi-head Control | Optional | |||
| Real-time Monitoring | Optional | |||
| Power Ramping | No | |||
| Speed Ramping | No | |||
| 2.5D Engraving | No | |||
| 3D Marking/Engraving | No | |||
| Scanning & Focusing System | Max. Working Speed | 6000mm/s | ||
| Calibration | 9×9=81 Points (17×17 – 65×65 Point Optional) | |||
| Max. Working Size | 40x40mm, 30um, 70x70mm, 30um, 100x100mm, 30um, 150x150mm, 30um, 175x175mm, 220x220mm, 350x350mm, | |||
| Min. Beam Size | ||||
| Min Working Distance | ||||
AiO all in one laser is a new-generation of laser system developed by Beijing JCZ Technology Co., Ltd exclusive for international mid-high end market. It is with ultra compact and light design, and ultra performance powered by world most advanced control system and fiber laser. It is a versatile laser system which could be used for many laser applications with high speed and high precision.
| 1 | A1 Laser x1 set. |
| 2 | USB Disk x1 set. |
| 3 | 24V Power Adapter x1 set. |
| 4 | Power Cable x 1. |
| 5 | Operation Software x 1 |
| 6 | 3×3=9 Points Calibration File x 1 |
| 1 | Rotary device. |
| 2 | Manual Z lift + working table. |
| 3 | PC + monitor. |
| More and more, all techniques are under our control. | |
| We are manufacturer of software, control system and galvo scanner as well as major shareholder and laser source company. | |
| STEPS OF TURNING ON | |
| 1 | Connect with 110V/220V AC power. |
| 2 | Take off the anti-dust cover from lens. |
| 3 | Turn on switches in order (Switch on the back). |
| 4 | Copy operation software to your desktop. |
| 5 | Create a desktop shortcut. |
| 6 | Open device manager and Install driver. |
| 7 | Open software, import calibration file. |
| 8 | Adjust Z lift and find the right focus. |
| 9 | Open device manager and Install driver. |
| 10 | Open device manager and Install driver. |
| 11 | Design or import marking data. |
| 12 | Setting up laser parameters. |
| 13 | Preview. |
| 14 | Start processing |
| STES OF TURNING OFF | |
| 1 | Save project files. |
| 2 | Close software. |
| 3 | Disconnect USB between machine and PC. |
| 4 | Turn off buttons with following orders. |
| 5 | Disconnect with 110V/220V AC power |
| 6 | Put anti-dust plastic lens cover on |
Laser machines require very little maintenance. However, the following is recommended:
⚫ Keep Area Clear of Debris and Clutter Free
Cleaning your work area is as simple as wiping it down with non-abrasive wipes or keeping a vacuum nearby.
Keep the area clean and free of debris by vacuuming or wiping the area with a clean rag after each use will
ensure top quality each time you use your machine.
⚫ Clean Lens
The lens is far from the material and so will not typically need to be cleaned after each job. Depending on
STES OF TURNING OFF
recommended.
⚫ Fire Extinguishers
While fire is not likely while running this machine, the possibility is always there. We recommend inspecting your fire
extinguishers annually with certified company. Monthly inspections are also recommended.
⚫ Computers
Depending on your computer set up will depend on the updates you allow your computer to run.
Windows 7 users: It is best to now allow your computer to do any updates as they tend to reset parameter
settings
