The hand held fiber laser marking machine is an intelligent laser marking system that is ideal for marking flat metal and non-metal surfaces and is an excellent solution for achieving permanent, high-contrast and fine marking.

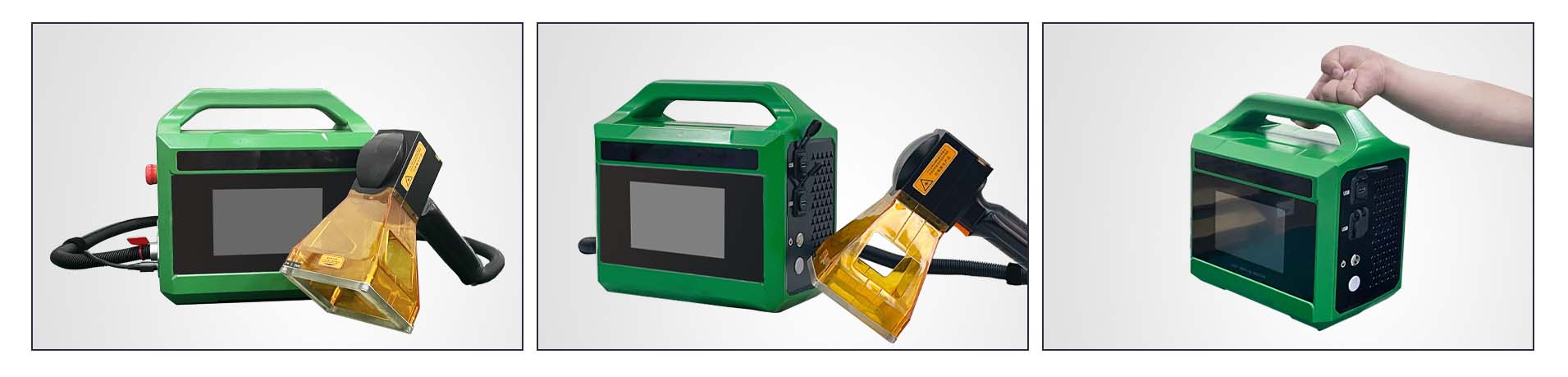

Handheld Fiber Laser Marking Machine – HF – A Series
With its ultra-compact handheld and portable design, the machine is widely used for permanent, high-precision printing and marking on a variety of product surfaces and packaging. Optional built-in battery is available.

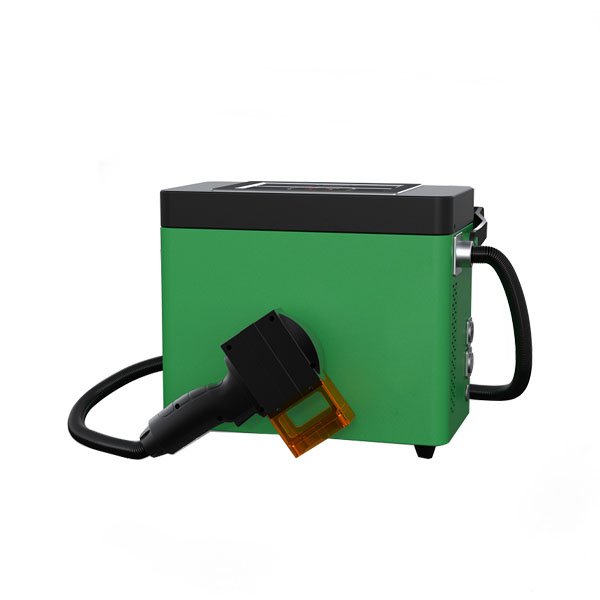

Hand Held Fiber Laser Machine
Features
Lightweight and portable design for easy handheld operation.
Suitable for various scenes and working environments, it can be used for fixed indoor office and flexible for outdoor operation.
Integrated flexible software control system can achieve various marking effects and customize multiple patterns.
Applications and Materials
Applicable to a variety of materials such as metals, plastics, rubber, ceramics, glass, etc.
Mainly used in electronics, automobiles, medical devices, aerospace, home appliances, mechanical hardware, textiles, accessories and other industries.
Specifications
| Model | HF-A-18-Ⅰ | HF-AⅠ-30-Ⅰ |
| Laser Generator | ||
| Laser Power(W) | 18W | 30W |
| Frequency(kHz) | 20-80kHz | 30-60kHz |
| Pulsed Width(ns) | 100(90-110)ns | 100(90-110)ns |
| Control System | ||
| Software | Multilingual Software | |
| Controller | Built-in Controller | |
| Scanning System | ||
| Max. Marking Speed(mm/s) | 6000mm/s | |
| Max. Marking Size (mm) | 100*100mm | |
| Others | ||
| Power Supply | 110V/220V Optional | |
| Cooling Method | Air Cooling | |
| Built-in Battery | Optional | |
| Model | HF-A-20-Ⅱ | HF-A-30-Ⅱ | HF-A-50-Ⅱ | HF-A-10-Ⅱ |
| Laser Generator | ||||
| Laser Power(W) | 20W | 30W | 50W | 100W |
| Frequency(kHz) | 1-600kHz | 1-600kHz | 1-600kHz | 1-4000kHz |
| Pulsed Width(ns) | 200ns | 200ns | 200ns | 2-500ns |
| Control System | ||||
| Software | Multilingual Software | |||
| Controller | Built-in Controller | |||
| Scanning System | ||||
| Max. Marking Speed(mm/s) | 6000mm/s | |||
| Max. Marking Size (mm) | 100*100mm | |||
| Others | ||||
| Power Supply | 110V/220V Optional | |||
| Cooling Method | Air Cooling | |||
| Built-in Battery | Optional | |||
