Table laser marking printer with lighter weight and smaller size. Utilizing fiber laser technology, it is perfect for marking on a variety of metal materials.Compact and user-friendly desktop laser marking and engraving systems that provide simplified 3D engraving capabilities to enhance your manufacturing business. Designed for manual loading and unloading, these I laser systems are ideal for a variety of applications, from marking and engraving metal parts to processing plastics, rubber, wood and other organic materials.

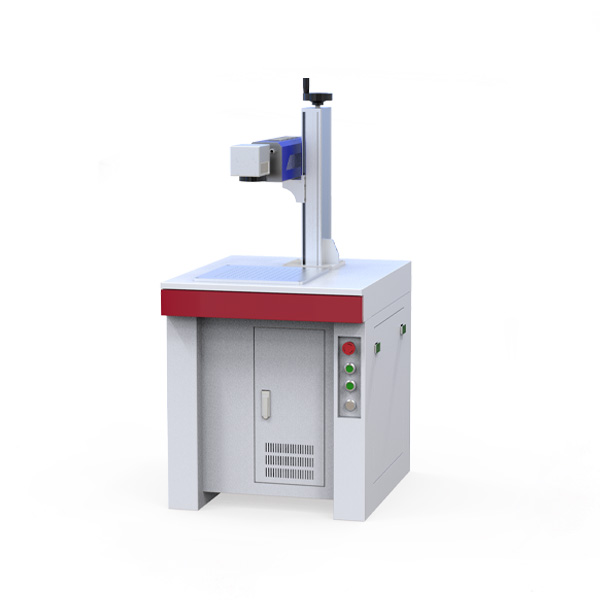

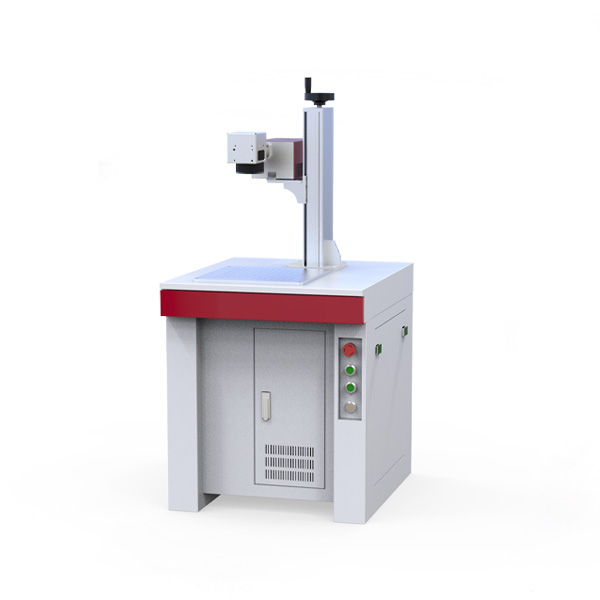

Table Type | Laser Marking & Engraving Machine – TF | TC | TU Series
Table laser marking printer with lighter weight and smaller size. it is with a workstation which can put the workpieces on it and mark any permanent content on any metal&non-metal materials.Optional laser source fiber,co2,uv.
Table laser marking printer
Features and Benefits
Exceptional Precision and Speed
With marking speeds of up to 12000mm/s (optional), JCZ Table Laser Marking Printers deliver efficiency without compromising on quality. The advanced EZCAD2 software ensures precise control for complex designs.
Versatile Marking Areas
Available in various sizes (70×70mm to 300×300mm), the marking area can be customized to meet the specific needs of your projects.
Robust Build and Easy Integration
Designed with a compact structure and durable components, JCZ printers integrate seamlessly into existing production lines or standalone setups.
Eco-Friendly and Cost-Efficient
Equipped with air cooling technology, these printers ensure low energy consumption and minimal maintenance costs.
Wide Application Range

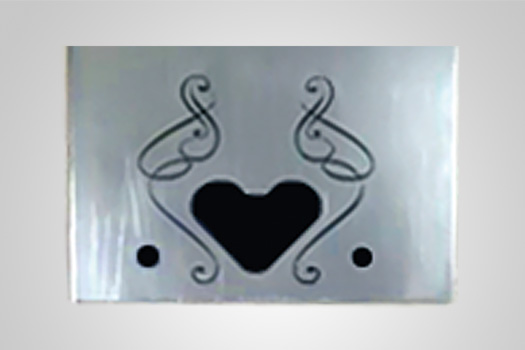

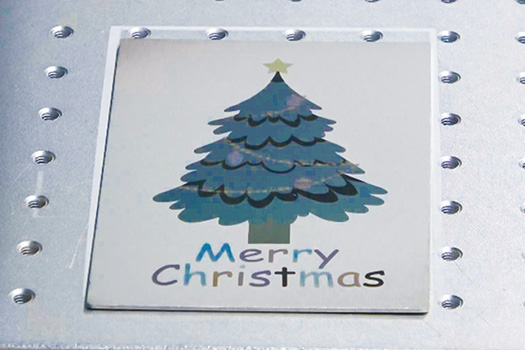

Suitable for marking metals, plastics, ceramics, and more, the printers are ideal for engraving serial numbers, barcodes, logos, and intricate patterns.
Applications
Electronics: Circuit boards, components, and device branding.
Jewelry: Custom engraving for metals and gemstones.
Automotive: Marking parts, VIN codes, and decorative details.
Medical Devices: Engraving serial numbers and compliance codes on surgical instruments.
Packaging: QR codes, batch numbers, and branding on plastic or metal packaging.

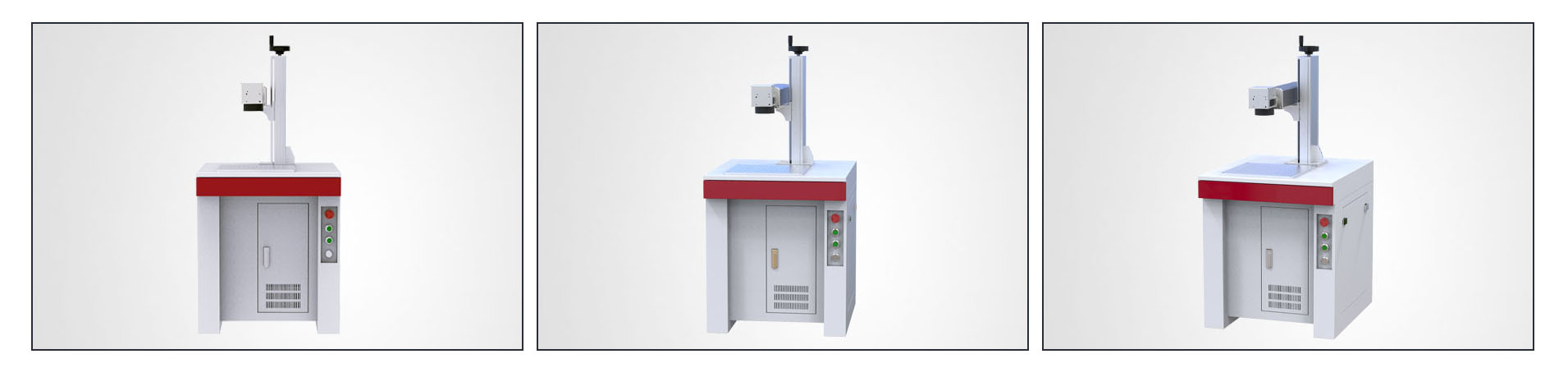

Specifications
| Model | TF-QS20 | TF-QS30 | TF-QB50 |
| Laser Generator | |||
| Laser Power(W) | 20W | 30W | 50W |
| Frequency(kHz) | 30-60kHz | 30-60kHz | 50-100kHz |
| Pulsed Width(ns) | 130ns | 130ns | 130ns |
| Control System | |||
| Software | EZCAD2.14.11-LITE | ||
| Controller | FBLI-B-LV4 | ||
| Scanning System | |||
| Max. Marking Speed(mm/s) | 6000mm/s(12000mm/s Optional) | ||
| Max. Marking Size (mm) | 160*160mm(70*70, 100*100,200*200,300*300mm Optional) | ||
| Others | |||
| Power Supply | 110V/220V Optional | ||
| Cable Length | 3M(4/5M Optional) | ||
| Adjustable Z Lift Travel | 500mm(700mm Optional) | ||
| Cooling Method | Air Cooling | ||
| Model | TF-ELP20 | TF-ELP30 | TF-ELP50 |
| Laser Generator | |||
| Laser Power(W) | 20W | 30W | 50W |
| Frequency(kHz) | 1-600kHz | 1-600kHz | 1-600kHz |
| Pulsed Width(ns) | 200ns | 200ns | 200ns |
| Control System | |||
| Software | EZCAD2.14.11-LITE | ||
| Controller | FBLI-B-LV4 | ||
| Scanning System | |||
| Max. Marking Speed(mm/s) | 6000mm/s (12000mm/s Optional) | ||
| Max. Marking Size (mm) | 160*160mm （70*70, 100*100,200*200,300*300mm Optional) | ||
| Others | |||
| Power Supply | 110V/220V Optional | ||
| Cable Length | 2M (3/4/5M Optional) | ||
| Adjustable Z Lift Travel | 500mm(700mm Optional) | ||
| Cooling Method | Air Cooling | ||
| Model | TF-EM720 | TF-EM730 | TF-EM760 | TF-EM780 | TF-EM7100 |
| Laser Generator | |||||
| Laser Power(W) | 20W | 30W | 60W | 80W | 100W |
| Frequency(kHz) | 1-4000kHz | 1-4000kHz | 1-4000kHz | 1-4000kHz | 1-4000kHz |
| Pulsed Width(ns) | 2-350ns | 2-350ns | 2-500ns | 2-500ns | 2-500ns |
| Control System | |||||
| Software | EZCAD2.14.11-LITE | ||||
| Controller | FBLI-B-V4 | ||||
| Scanning System | |||||
| Max. Marking Speed(mm/s) | 6000mm/s (12000mm/s Optional) | ||||
| Max. Marking Size (mm) | 160*160mm(70*70, 100*100,200*200,300*300mm Optional) | ||||
| Others | |||||
| Power Supply | 110V/220V Optional | ||||
| Cable Length | 2M(3/4/5M Optional) | 3M(4/5M Optional) | |||
| Adjustable Z Lift Travel | 500mm(700mm Optional) | ||||
| Cooling Method | Air Cooling | ||||

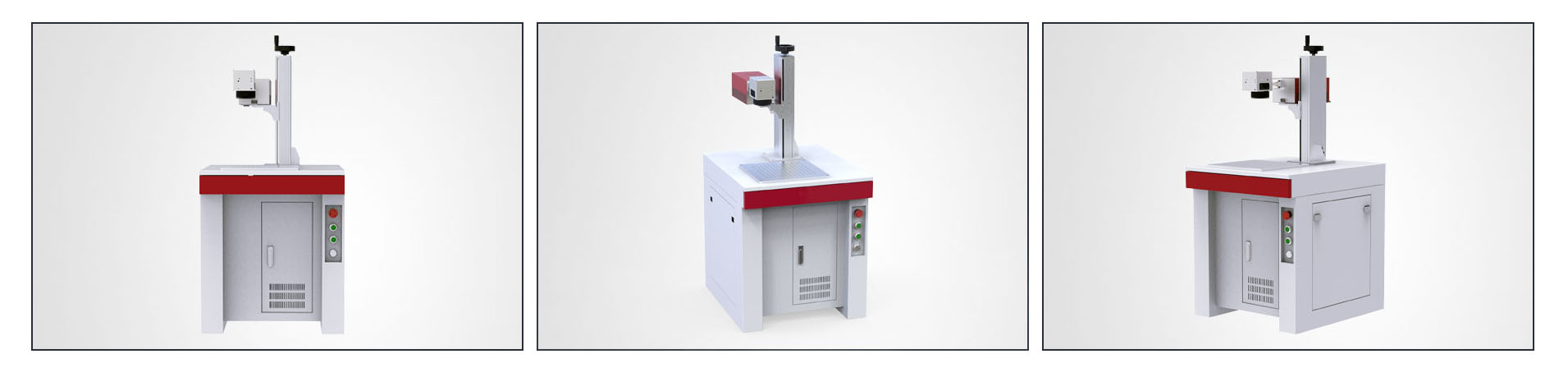

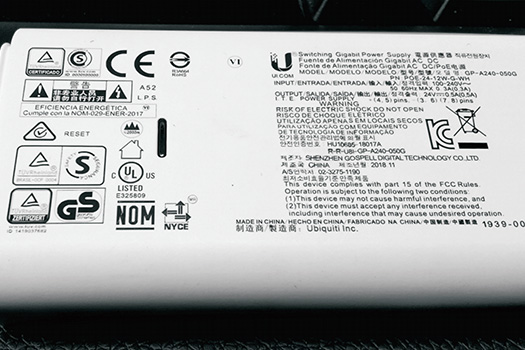

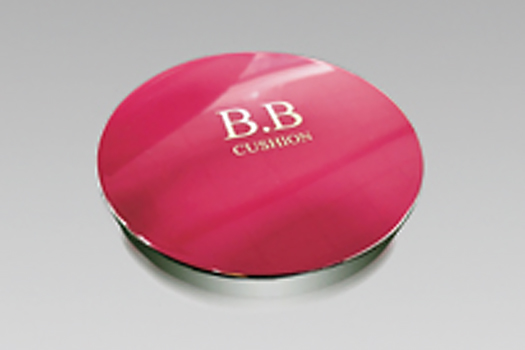

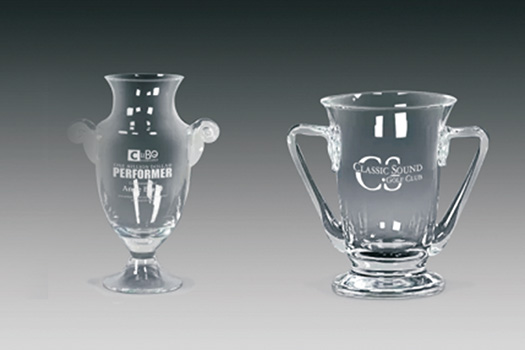

UV Laser Marker – TU Series
Featuring a high-quality benchtop workstation design and a high-speed galvo scanning system, the TU series is suitable for engraving or marking tasks on metals, plastics, crystals and more.
Specifications
| Model | TU-L3A | TU-L5A | TU-S10 |
| Laser Source | |||
| Laser Power(W) | 3W | 5W | 10W |
| Frequency(kHz) | 20-200kHz | 20-150kHz | 40-300kHz |
| Pulsed Width(ns) | 18ns | 18ns | 15ns |
| Control System | |||
| Software | EZCAD2 | ||
| Controller | SZLI-B-V4 | ||
| Scanning System | |||
| Max. Marking Speed(mm/s) | 6000mm/s (12000mm/s Optional) | ||
| Max. Marking Size (mm) | 160*160mm (70*70, 100*100,200*200,300*300mm Optional) | ||
| Others | |||
| Power Supply | 110V/220V Optional | ||
| Adjustable Z Lift Travel | 500mm(700mm Optional) | ||
| Cooling Method | Air Cooling | Water Cooling | |

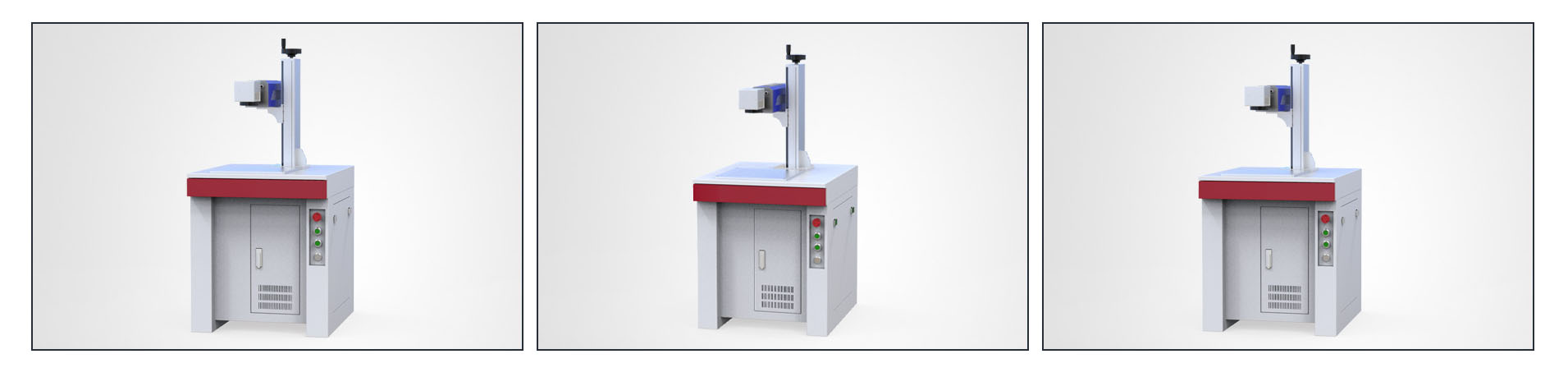

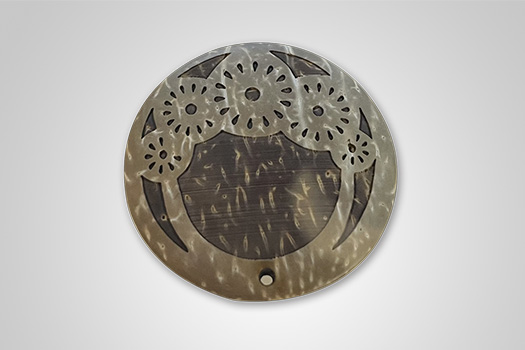

CO2 Laser Marker – TC Series
Equipped with a high-powered RF diode CO2 laser, the TC Series is designed for versatility in laser marking, engraving, 2.5D depth engraving and cutting on metal, glass, plastic, slate and other materials.
Specifications
| Model | TC-D30 | TC-D50 |
| Laser Generator | ||
| Laser Power(W) | 30W | 50W |
| Frequency(kHz) | 0-25kHz | 0-25kHz |
| Control System | ||
| Software | EZCAD2 | |
| Controller | SZLI-B-V4 | |
| Scanning System | ||
| Max. Marking Speed(mm/s) | 6000mm/s (12000mm/s Optional) | |
| Max. Marking Size (mm) | 160*160mm (70*70, 100*100,200*200,300*300mm Optional) | |
| Others | ||
| Power Supply | 110V/220V Optional | |
| Adjustable Z Lift Travel | 500mm(700mm Optional) | |
| Cooling Method | Air Cooling | |
- High Precision & Stability
- The table-type structure ensures excellent stability, reducing vibration during marking.
- Provides high-precision engraving and marking with micron-level accuracy.
- Versatile Material Compatibility
- Suitable for marking on metals (stainless steel, aluminum, titanium, etc.), plastics, ceramics, glass, wood, and more.
- Ideal for deep engraving, fine etching, and surface texturing.
- User-Friendly Operation
- Equipped with an intuitive interface for easy control and customization.
- Supports various file formats, making it compatible with different design software.
- Efficient & High-Speed Marking
- Optimized for mass production with fast marking speeds and consistent quality.
- Reduces downtime and enhances production efficiency.
- Durability & Low Maintenance
- Built with high-quality materials for long-term durability.
- Fiber laser sources have a long lifespan (up to 100,000 hours) with minimal maintenance.
- Customizable Work Area
- Available in different table sizes to meet specific application needs.
- Optional rotary attachments for cylindrical marking and additional automation features.
- Eco-Friendly & Cost-Effective
- No consumables required.
- Energy-efficient operation reduces operational costs.
- Wide Industry Applications
- Used in automotive, electronics, medical, jewelry, packaging, and aerospace industries.
- Perfect for engraving serial numbers, QR codes, barcodes, logos, and detailed patterns.
The Table Type Laser Marking & Engraving Machine is an ideal solution for businesses requiring high precision, stability, and efficiency in their marking and engraving processes.
The Table Type Laser Marking & Engraving Machine is widely used across various industries due to its high precision, stability, and versatility. It is ideal for marking, engraving, and etching on a wide range of materials, making it a preferred choice for industries such as:
1. Automotive Industry
- Marking serial numbers, barcodes, and QR codes on engine components, brake pads, and dashboards.
- Engraving VIN codes and branding labels for traceability and anti-counterfeiting.
2. Electronics & Semiconductor Industry
- Fine marking on PCBs, chips, connectors, and electronic components.
- High-precision engraving of small-scale text, numbers, and codes for identification.
3. Medical Industry
- Permanent marking on surgical instruments, implants (e.g., titanium bone screws, dental implants), and medical devices.
- Non-toxic, corrosion-resistant engraving for regulatory compliance.
4. Jewelry & Luxury Goods Industry
- Engraving custom patterns, text, logos, and serial numbers on gold, silver, platinum, and other luxury items.
- Creating fine designs on watches, eyewear, and accessories.
5. Aerospace & Defense Industry
- Marking aircraft components, turbine blades, and metal nameplates for identification and traceability.
- High-temperature and wear-resistant labeling for extreme environments.
6. Packaging & Labeling Industry
- Permanent marking of barcodes, QR codes, and expiration dates on glass bottles, plastic containers, and metal packaging.
- Eco-friendly alternative to ink-based labeling, ensuring long-lasting clarity.
7. Tool & Hardware Industry
- Engraving serial numbers, brand names, and specifications on metal tools, drill bits, and wrenches.
- Deep engraving on stainless steel and titanium for durability.
8. Consumer Electronics & Home Appliances
- Marking brand logos, serial numbers, and safety instructions on smartphones, laptops, and household devices.
- Engraving decorative elements on gadgets and accessories.
9. Industrial & Manufacturing
- High-speed, precise marking of machine components, control panels, and industrial equipment.
- Batch marking for efficient inventory tracking and quality control.
10. Education & Creative Industry
- Engraving on wood, acrylic, leather, and glass for customized gifts, awards, and promotional products.
- Ideal for prototype development and personalized branding.
With its high precision, fast marking speed, and wide material compatibility, the Table Type Laser Marking & Engraving Machine is an essential tool across various industries, providing permanent, clear, and high-quality markings for industrial and commercial applications.
